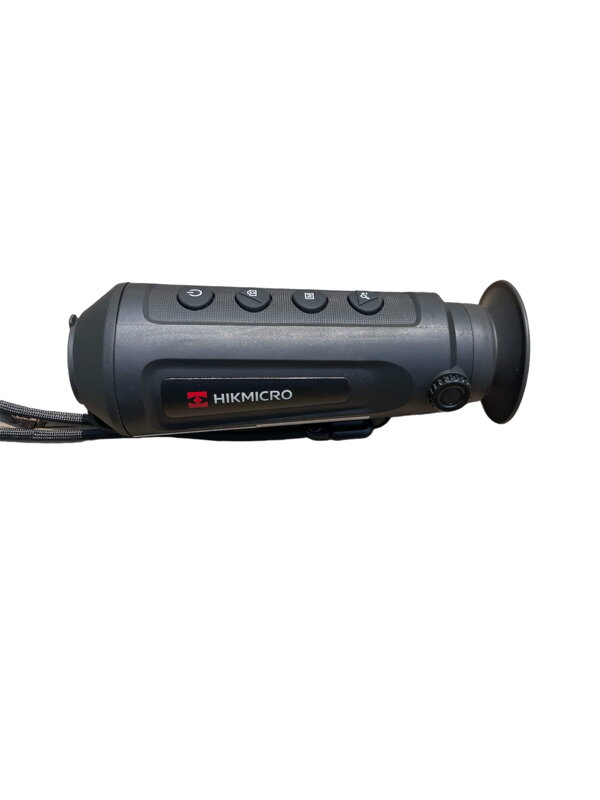

Hikmicro Lynx Pro LE10

The HIKMICRO LYNX PRO LE10 thermal imaging camera (HM-TS02-10XG/W-LE10) is equipped with a high quality 256×192 px 12µm resolution core (12 micron technology) and a new 720x540 px LCOS display with a 10mm lens and 8x digital zoom.

The thermal imager supports hot spot (tracking the hottest spot in the image), rangefinder and Wi-Fi. The LE10 is Hikmicro's entry-level model and even so, it allows detection up to 1239m and the battery life is a respectable 8 hours of continuous operation.

The LE10 is equipped with the latest image processing techniques:

Auto Gain Control (AGC). AGC. Hikvision thermal imaging cameras use an automatic Gain Adjusting technology that automatically adjusts the gain of the thermal imaging camera. Hikikim. AGC technology, which is called adaptive AGC. The AGC technology is much more advanced. than? normal? so-called linear reduction? AGC used in the past? in the thermal imaging cameras of other manufacturers.

Digital Detail Enhancement (DDE) DDE technology uses advanced algorithms to render details sharper even when they are in low contrast areas (warm/cold objects).

3D Digital Noise Reduction (3D DNR) 3D DNR technology very effectively removes grainy or blurry parts of the observed scene. The resulting image is much clearer than instruments using traditional two-dimensional noise reduction (2D DNR).

HIKMICRO is one of the few manufacturers to have in-house production of a 256x192 resolution, VOx-type core, making the latest thermal imaging cameras great value for money. The lower the NETD value (35mk), the better the sensor can record small temperature differences of objects with a perfect image!

The built-in thermal detector with high sensitivity of 35mk provides a clear image even in harsh environmental conditions such as darkness, fog, smoke, dust, rain, snow, forest cover, etc.

Detector resolution 256×192 px, 12 µm, VOx
NETD (thermal sensitivity) < 35 mk (at 25 °C, F#= 1.0)
Lens 10 mm
Magnification 1 - 8x
Digital magnification 1x, 2x, 4x, 8x
Field of view 17.5°x13.1°
Refresh rate 25 Hz
Detection 1239 m
Display 0.2 inches, LCOS, 720x540px
Heat palettes like Black, Red, White, or Fusion
Hottest point detection YES
Wi-Fi capability YES
Built-in storage 8 GB
Photo capability YES
Video capability YES
Rangefinder YES, Proportional
Battery type Lithium battery
Power saving mode YES
Battery operating time Up to 8 hours continuous operation (without Wi-Fi function)
Power supply 5 VDC/2 A, 1.5 W, USB-C type
Operating temperature -20° C to 55° C (-24° F to 131° F)
Protection level IP67
Drop resistance up to 1.5 m
Dimensions (L x W x H) 158×61×57 mm
Weight
260 g
Warranty 3 years
*Detection is dependent on, among others, the following. Detection is dependent on meteorological conditions (snow, rain, fog, ambient temperature, etc.) Actual detection performance may be both higher and lower.

Package contents:

Hikmicro LE10 thermal imaging monocular
Optics cleaning cloth
Transport bag
Instructions in English
Power cord
